• Fast and convenient interconnection of control circuits and power connections in hazardous areas
• Machined brass construction with built-in shock protecting fenders for maximum impact resistance in extreme working environments
• Extremely tough, moulded urethane weather caps permanently attached and ready to hand, incorporating shock fenders and IP67 captive ingress seals
• Linear, multi-contact connectors give exceptionally low insertion force and long term reliability Two body sizes with a choice of contacts from 3 up to 37
• Available with 12.5 mm or 25 mm flame paths dependent upon application
• Group I & Group IIB hazardous areas with Ex d component acceptance certification to simplify system design and approval
• Simple to mate, no special tools required – 2 x large easily accessible screw fasteners unite the connectors in seconds
• Utilises standard low cost Ex d cable glands with a choice of cable entry format
• Easy to disassemble – quick access by releasing 2 x large cover shell screws

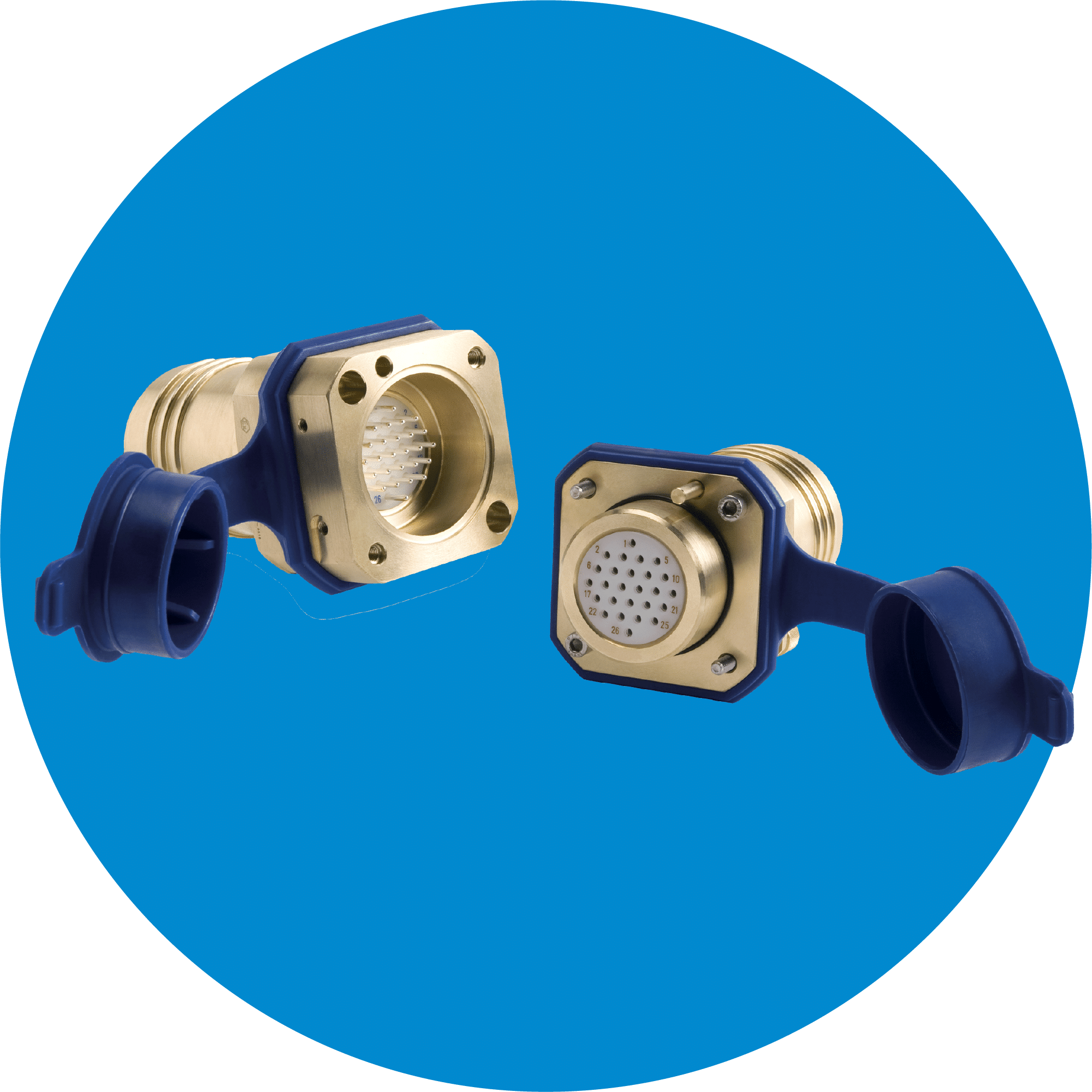

• Machined metal plug unit with engagement plug forming the flame path (12.5 mm or 25 mm)
• Machined metal receptacle unit with engagement receptacle forming the flame path
• High grade co-polymer contact insert carrying slide-in contact pins and sockets
• Silver plated contact pins suitable for solder or crimp connections
• Silver plated contact tubes with longitudinal multi-contact springs for high reliability and low insertion force, providing exceptionally low contact resistance
• Machined metal cover shell for terminating the incoming cable utilising standard Ex d cable glands of choice
• Choice of cable gland entry thread to specification
• Ex d or e enclosure. Mounting with basic receptacle unit fitted or cable line connector
• 2 x large, hand operated, mating screws to quickly unite the connector with complete security
