Outdoor industrial environments include industries such as construction and quarrying and are at high risk of excess hazardous dust exposure. This type of dust is referred to as construction dust. Construction dust is often a cause of serious ill health for many workers, causing diseases such as Chronic Obstructive Pulmonary Disease (COPD), Occupational Asthma and Silicosis.

According to the UK’s Health and Safety Executive (HSE), the term construction dust “is a general term used to describe different dusts that you may find on a construction site” and is also produced through similar workplace processes. These different dusts include silica dust, created when working on materials such as concrete or stone, wood dust which is created when working on materials like softwood, hardwood, or wood-based products and ‘general dust’ created when working on materials like limestone or marble.

The main issue relating to construction dust is often the failure to effectively eliminate or minimise workers’ exposure to it, in and surrounding any outdoor industrial environment, as well as the methods taken to do this.

A broad range of workplace processes taking place in construction and quarrying essential to the job, like crushing, cutting, and grinding cause general dust to become airborne leading to exposure for workers. Similarly, when grinding into bricks, extraction of rock and similar processes using silica containing materials creates respirable crystalline silica (RCS) which, when inhaled, becomes incredibly harmful to the lungs.

Often, the scale of the hazard depends on varying factors, including time, location, and methods of working. If people are working on tasks for longer, in a more enclosed space or are not using effective control methods for the dust, e.g. dry sweeping the dust, they are more likely to increase their risk of dust exposure.

In many cases, it’s difficult to completely eliminate or substitute materials causing excess dust, due to the materials being used for the job. Therefore, workplaces may work in line with the Hierarchy of Controls to introduce engineering controls to isolate and limit workers from exposure to the hazard by altering the way the work.

Construction dust is a major issue for multiple countries. Worldwide, there are over 200 million people employed in both construction and quarrying industries, meaning there’s a high risk of all outdoor industry workers being exposed to occupational lung diseases. For example, in the UK, it’s estimated that between 3,000 – 4,000 construction workers per year suffer from a work-related breathing or lung issues.

Construction dust can affect different areas of an outdoor site. When completing processes such as grinding and cutting, dust may be closer to the breathing zone for individuals, heightening the chance of inhalation of hazardous particles. In contrast, processes like crushing and extraction may produce a larger amount of dust, making it airborne and spreading further affecting an entire site.

Because these mentioned workplace processes take place outdoor, this finite dust can spread across entire sites and even further afield. The Environmental Protection Agency estimate that particle pollution generated in one area of a workplace can travel hundreds or thousands of miles.

For all industry workers across an entire site, construction dust is a serious concern. Whilst workers directly involved in construction or quarrying processes are most at risk, any workers in nearby office cabins, the local communities or members of the public nearby can also be at risk, due to the nature of finite dust becoming airborne and spreading further afield.

In 2019, Joanna McNeil was employed by an Australian quarrying and construction materials company, where her office was located in a portable cabin. Despite being located around 100 metres away from the quarry, Joanna developed silicosis due to exposure to hazardous silica dust at the age of just 36.

Almost anyone located on and nearby a construction or quarrying site can be severely affected by exposure to hazardous dust, whether directly involved in the workplace processes or simply by just being located nearby the worksite.

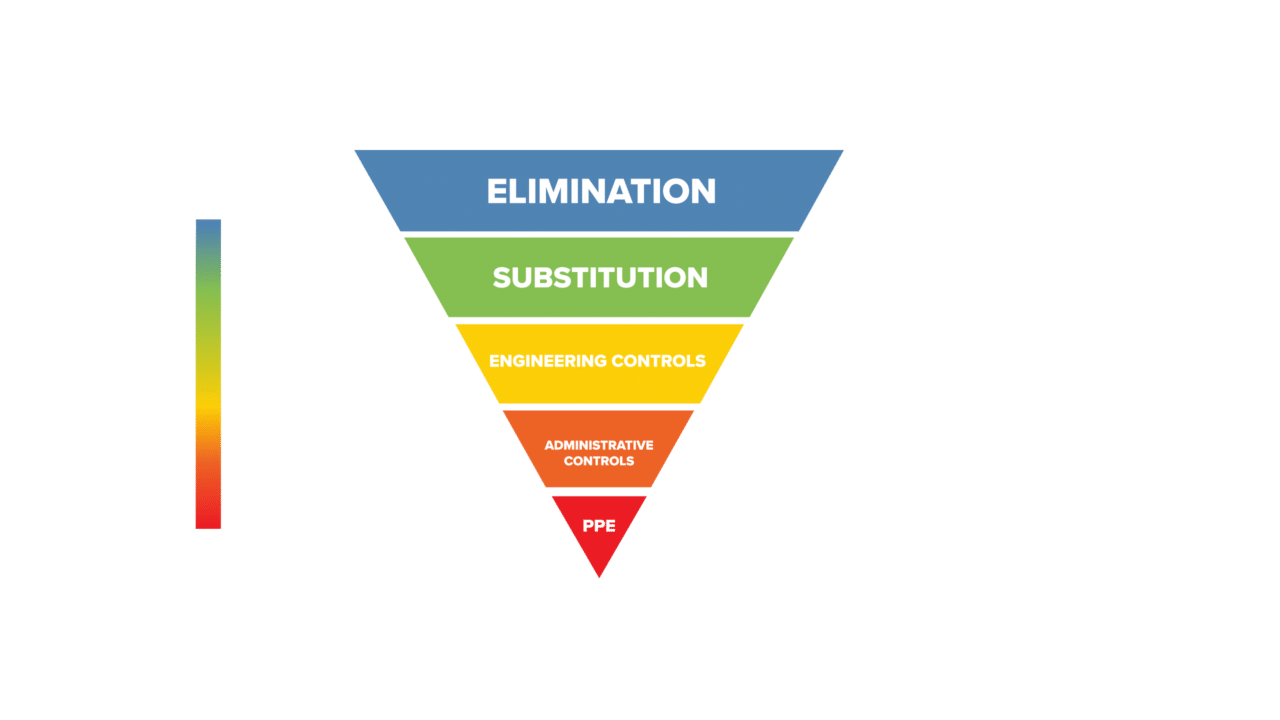

Elimination is the complete removal of the hazard in the workplace. For this it requires eliminating the risks completely at the source. This can be done by completely changing the process during work, completely removing the hazardous materials being used, or completely removing certain machinery in the workplace.

Substitution is arguably a more suitable alternative than elimination. Although elimination is the preferred, substituting certain processes, materials, or machinery for safer alternative may be a more realistic option, such as choosing low dust alternative materials, or less powerful machinery which generates less gas.

In scenarios where changing the entire workplace process isn’t possible, introducing engineering control to combat and control the hazard being generated is a suitable option. Controls such as Local Exhaust Ventilation (LEV), water suppression and damping methods, and enclosures and cabins ensures dust doesn’t become airborne.

Administration controls ensures that workers remain away from direct contact with airborne dust in scenarios where dust cannot be eliminated, substituted or controlled. Examples like this include regular maintenance of all workplace environments, limiting worker exposure to gas generating processes and effective workplace clothing.

Personal Protective Equipment is the last resort for controlling dust in the workplace, yet it can be effective if deployed correctly. With multiple options of PPE available, it’s important that PPE is correctly selected depending on the job which is being undertaken. Comfort, fit testing, individual usage and training are all essential for selecting the correct PPE.

• Respirable Crystalline Silica is one of the most hazardous types of dust workers can be exposed to. RCS forms many types of natural materials such as stone, sand and rock, and is generated when these materials are cut, ground or made fine through various different workplace processes.

• Common industries exposed to RCS: Construction, mining + stone working

• Asbestos dust is generated through the damaging of asbestos-containing materials such as cements, tiles and other products in manufacturing environments. When airborne, asbestos dust is easily inhaled due to its small size and scars deep into the lungs, causing lung diseases.

• Common industries exposed to asbestos dust: Construction, demolition + manufacturing

• Substances and ingredients which are used to make pharmaceutical products can often create high levels of hazardous dust during processes such as milling, pressing, blending and grinding. API dusts can include organic compounds, metal powders and combustible properties.

• Common industries exposed to API: Chemical Manufacturing + Pharmaceutical

• Coal dust is generated in various underground environments when coal is being mined for, in rocks and other natural structures and materials. Cutting, grinding and blasting rocks makes coal dust easily inhalable, especially in environments with limited ventilation or space, such as underground.

• Common industries exposed to coal dust: Mining, quarrying, gold (open-pit) mining + tunnelling

• Construction dust can be generated from any kind of construction activity, whether cutting, drilling, mixing materials, building infrastructure, or other processes. Materials like stone, cement, sand and brick generate fine, respirable materials which create high levels of construction dust.

• Common industries exposed to construction dust: Construction + quarrying

• Grain dust is created when using barley, wheat and other natural materials from farming and harvesting. These processes in agriculture, as well as the manufacturing of grains in food production lead to grain dust exposure, generated from handling, transferring, milling and mixing grain.

• Common industries exposed to grain dust: Agriculture + food production

• Flour dust is generated through mixing, cutting and handling flour, whether from initial farming and harvesting of crops, to processing it in food production. Exposure to flour dust can be dangerous, as its easily inhaled due to its small size and common use and worker exposure in food processing

• Common industries exposed to flour dust: Agriculture + food production

• Textile dust is generated during apparel and clothing manufacturing due to processes such as drawing, carding, spinning, handling materials, and others, particularly due to the properties of wool, cotton and fibres. Occupational asthma and respiratory irritation is common for workers exposed to textile dust.

• Common industries exposed to textile dust: Textile + apparel manufacturing

• Fine metal particles generated through welding can lead to various occupational illnesses. Welding at high temperatures, above certain materials boiling point generates high levels of metal dust, particles and fumes which need to be effectively controlled during welding processes.

• Common industries exposed to welding dust: Manufacturing + welding

• Sawing, cutting and drilling into wood products often generates high levels of dust. This can be either hardwood dust, generated from oak or beech trees, or softwood dust, such as pine or fir trees. Exposure to hardwood dust can cause serious cancers, whilst softwood dust can cause respiratory irritation.

• Common industries exposed to wood dust: Construction, forestry + woodwork

By segregating processes which produce large volumes of dust, you can control the amount of dust your workers are exposed to. In some cases, it may even be possible to make the process entirely automated, meaning no workers are exposed to dust. Introducing a remote operation, e.g. a separate room or section within a facility meaning workers completing the dusty process never directly come into contact with the excess dust created. This process means that if workers have to complete a task which is likely to create excess hazardous dust, they spend as little, or if possible, no time exposed to the dust.

In cases where segregation isn’t possible, extraction is an option to control excess dust. Local Exhaust Ventilation (LEV) systems can be built into machines or processes which create excess dust. LEV and extraction systems collect contaminants like dust and filter out the contaminants before they’re released into the air. This process can be used for multiple processes within the workplace such as storage bins, grinding mills, conveyors, mixing machines and many more, ensuring that when excess dust is created it does not come into direct contact with workers during these processes.

Using less-toxic materials, where applicable, is another suitable method for controlling dust exposure in your workplace. For example, the use of pellets rather than powders, or replacing sand with garnet as abrasive blasting agent can allow workers to produce a similar end product during workplace processes whilst minimising risk of dust exposure. By substituting out materials for less toxic alternatives, workers can continue their processes throughout the day, at less, or almost no risk to their respiratory health.

The use of wet methods can provide almost no airborne dust during workplace methods. Damping down materials such as stone and concrete, which are used for many workplace processes and usually create high levels of dust when disturbed, can mean potential airborne dust is limited due to the particles binding together when wet. Similarly, methods of cleaning such as dry sweeping dust or compressed air lines can spread and disturb hazardous dust across the workplace, making it airborne and posing a threat to workers health, controlling excess dust and reduce the risk to workers.

Excess dust is a consist problem in workplaces where highly dusty processes occur, especially if it is not possible to completely eliminate the risk of dust. By maintaining cleanliness, encouraging workers to work with care and instructing them how to control the dust produced in their work processes by following the methods mentioned, control of dust can become a regular process in the workplace.

The ability to know in real-time when dust exposure limits are breached and to see all the data your real-time dust monitor picks up throughout your working day allows you to find the root of your dust problem. With Audio/Visual alarms and live readings for dust level breaches, you can deduce exactly which processes are causing excess dust levels. Similarly, by viewing data over full shifts and seeing when dust levels are highest, you can deduce what processes were completed at that time, to find the root of your dust problem. By finding the root of your dust problem, effective control measures can then be introduced.

AIR X real-time particulate monitors have a single-user configurable Audio/Visual alarm that can be used to warn users of a specific particulate threshold breaches based on a chosen limit or value. For example, in the UK, the Workplace Exposure Limit for Respirable Crystalline Silica is 0.1 mg/m3 over an 8-hour period. A customisable alarm can be set on your TX8100 AIR XS Silica Monitor will alert you in real-time if the threshold is breached during your working day. This allows you and your workforce to work as normal throughout their day, knowing that you’ll be alerted as soon as you’re set limits are breached.

Our real-time dust monitoring technology can be deployed as either fixed, area or personal monitoring, so workers in any location of your workplace can monitor for dust in real-time. This allows for all areas of the workplace to consistently monitor for excess dust, as well as deduce which areas of the workplace are at higher risk of dust exposure. Deploy the full range of AIR X particulate monitors alongside one another to provide the more accurate and reliable readings of dust levels, all in real-time, so your workers are protected across entire shifts, across the whole workplace.

All our AIR X technology has supporting software, via desktop and in some cases mobile, to view all live and historical data. Breathe Software allows you to view data as it happens and view up to 10-years’ worth of data, so you can consistently track any changes as they happen over time. By viewing all the data your dust monitor picks up, you can see when dust levels peak and from this deduce the most effective control measures that need to be introduced in line with what process cause the spike and where this was occurring.

The ability to know in real-time when dust exposure limits are breached and to see all the data your real-time dust monitor picks up throughout your working day means you can work in-line with the Hierarchy of Controls, to eliminate or substitute the hazard, and introduce control measures for excess dust. By finding the root of your dust problem through real-time dust monitoring, you can not only introduce dust control measures to eliminate or reduce exposure to dust but can also effectively monitor your control measures to see how effective they’re working, and make vital and supported business decisions if further changes are required.

First and foremost, the benefit of seeing dust levels in real time is being able to deduce whether you, your workers and your occupational environments are safe. Respirable dust is smaller than 10 μm meaning it’s invisible to the human eye, yet it’s so finite that it can easily be breathed in and penetrate the lungs. You may be breathing in respirable dust and putting your respiratory health at risk without even knowing it. But with real-time dust data, you can know exactly how much dust you’re exposed to throughout your working day and introduce the necessary steps to protect your respiratory health.

Real-time dust data isn’t just available for live readings in real time. Compatible with all our real-time monitoring technology, our Breathe Software collects and stores data for up-to 10-years, so you can see changes in your dust levels for the entire previous decade. You can track trends in the dust levels your workers are exposed to over a period of time in your working day, week, month or year and determine whether you and your workers have been exposed to potentially hazardous substances over that period.

Our dedicated real-time dust monitoring software allows you to personalise all the relevant settings for your Trolex real-time dust monitor. If the dust monitor is alarming you of dust levels irrelevant to your local legislative limits, it’s not necessarily going to protect you as effectively as if it’s alarming you of the dust levels in your local environment. Our Breathe software lets you set dust levels specific to your environment and workplace to ensure you’re constantly monitoring for dust levels in the most effective way possible.

Real-time dust data allows you to see trends in your dust levels over a set period and subsequently introduce vital control measures to effectively manage and control dust. Our dedicated Breathe Software allows you to understand at what time peak dust levels were in your working day and deduce what activities were taking place during this time, so you can introduce relevant and effective control measures to prevent future dust from becoming airborne at this time.

After introducing control measures, you can continue to use real-time dust data through our dedicated Breathe Software to see how effective these control measures are in controlling dust. If you can’t continually track dust levels over time, it’s impossible to know if your control measures are working effectively, which could cost money, time and most importantly harm your health and wellbeing. However, thanks to Breathe Software, you can see how dust levels are affected by introducing control measures and subsequently make vital decisions to continue to control dust exposure.

Each year thousands of construction workers contract or die from respiratory diseases from exposure to dust, including silica dust. This can be due to direct exposure on site or simply by just working nearby the construction site, e.g. in a nearby office or cabin.

Obviously, activities such as drilling, cutting and building generates dust, as raw materials such as brick and stone are disturbed and ground down, making fine dust become airborne, but dust also becomes a risk to workers nearby in other ways.

Respirable Crystalline Silica (RCS) is less than 10µm in size, meaning that it’s not only easily inhalable, but is also fine and small enough to travel far distances effecting individuals not directly located near construction activities.

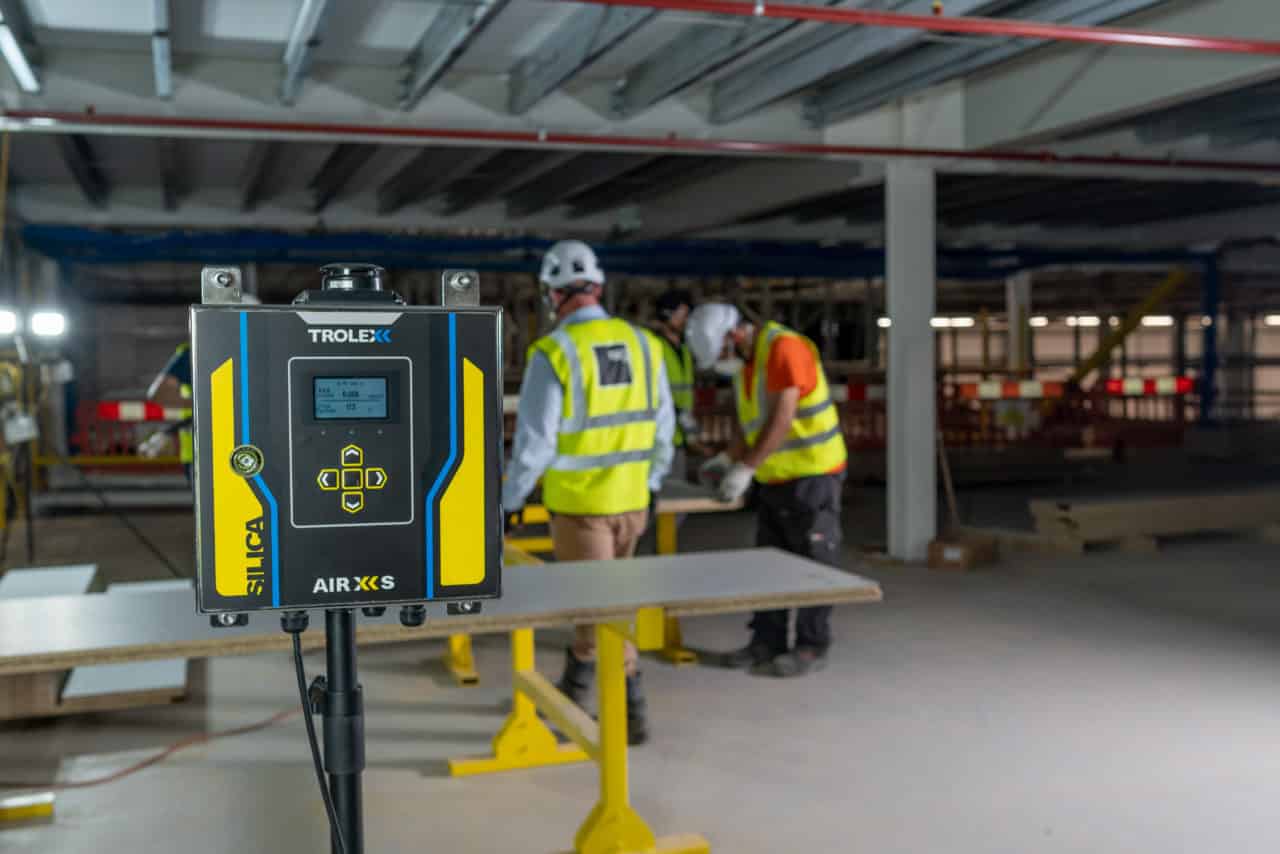

Real-time silica monitoring with AIR XS provides transportable monitoring of respirable silica dust, with a measurement capacity of 1µm to 10µm to monitor across entire construction sites, in nearby offices and further a-field to protect everyone.

With the ability to monitor in real-time, workers can gauge which activities are causing certain RCS levels at specific times in the day, e.g. if cutting stone causes higher levels of RCS, to then introduce effective control measures to limit RCS generation.

In the UK alone, there are approximately 2.6 million manufacturing workers, working with various different materials. Approximately 20% of workers in the UK are affected by dust from stone, cement, brick or concrete across workplace processes.

Manufacturing processes can involve anything from welding and joinery to grinding, cutting and polishing. It can entail all different types of raw materials such as metals and plastics, as well as clay, glass and sand which can all generate dangerous RCS.

In manufacturing as a whole, which uses various different raw materials and often has multiple processes occurring at once, it’s important to be able to distinguish RCS from other dusts, in total dust loads and mixes, in real-time, both accurately and reliably.

Real-time silica monitoring with AIR XS provides detailed information by examining multiple detection parameters for RCS in real time, including size, symmetry, and a series of optical markers unique to RCS particles, in total dust loads.

An estimated 49.5 million miners worldwide are exposed to high concentrations of RCS during their work. Due to specific work processes, enclosed spaces and limited air quality, exposure to silica dust can have a big impact on mining and its workers.

Processes such as drilling and blasting of materials, even more so during demolition of entire structures, generates high levels of dust, such as silica, due to brittle underground materials such as sand and rock being regularly disturbed.

As well as this, due to the lack of ventilation and air quality underground, as well as the enclosed spaces which workers find themselves in, RCS can become easily inhaled, sometimes causing life-threatening respirable diseases.

Real-time silica monitoring with AIR XS offers workers the ability to know exactly how much silica dust they’re exposed to, live and in real-time, no matter the environment they’re in, even including in noisy, high-volume workspaces with limited visibility.

Real-time readings on device as well as live and historical data through BreatheXS software allows workplaces to subsequently introduce the correct and effective control measures to prevent further overexposure.

Exposure to silica dust in quarries is not uncommon. Highly dusty processes, with heavy-duty machinery and large-scale vehicles not only generate dust from materials but also disturb settled dust on the ground, increasing the risk.

Crushing, drilling and blasting of raw materials such as sand and stone can generate high levels of RCS. This dust in incredibly fine and invisible to the human eye, making it easily inhalable and airborne.

With the wide-open spaces of quarrying, and various different activities and processes being undertaken, this fine dust can easily spread from one area to another, increasing the risk of exposure to it and subsequent associated health risks.

Real-time silica monitoring with AIR XS ensures that all RCS is accurately monitored for, particularly of vast open areas of the quarry, to account for all workers who may be exposed to hazardous silica dust.

Thanks to the transportable capabilities of AIR XS, multiple areas, all activities and processes in a quarrying environment can be regularly monitored, allowing for effective control measures to be introduced for excess silica dust.

Silica is a naturally occurring mineral found in many types of rocks and stones. When working in stonemasonry, natural minerals are regularly cut into, generating high levels of RCS, exposing workers to potential lung and respirable illnesses.

Shaping, cutting and crafting natural and engineered stone involves chiselling, grinding and polishing of stone, which can contain up to 90% silica content. Once disturbed it often becomes airborne further increasing the risk of illness.

Without effective and regular control measures, suitable for the material on the job, such as wet methods and dust extraction workers may put themselves and other workers at risk. Real-time silica monitoring can help to support this.

Real-time silica monitoring with AIR XS provides a valuable insight to the entire workplace, which can be used for introducing the correct control measures to ensure that workers aren’t overexposed to high silica content.
