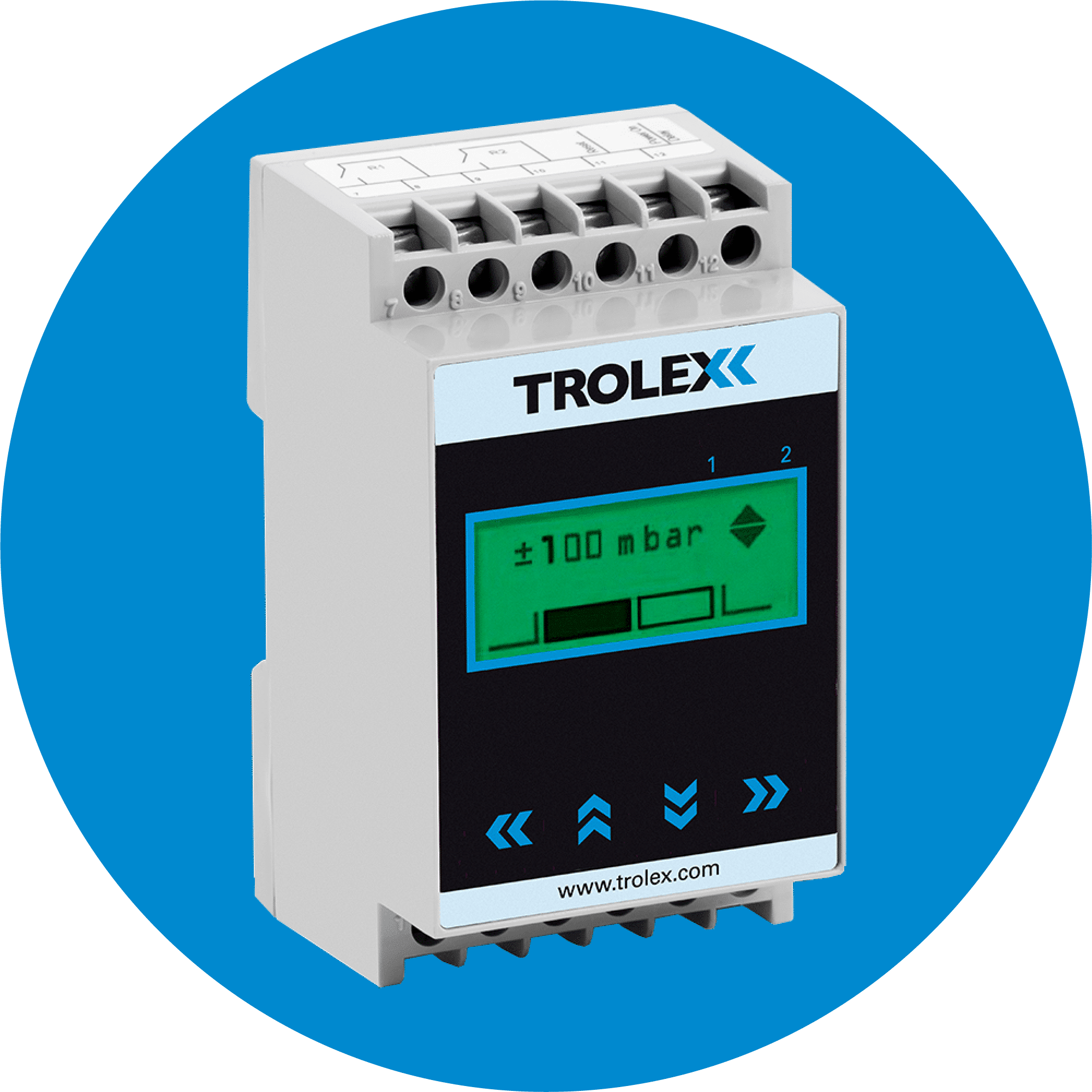

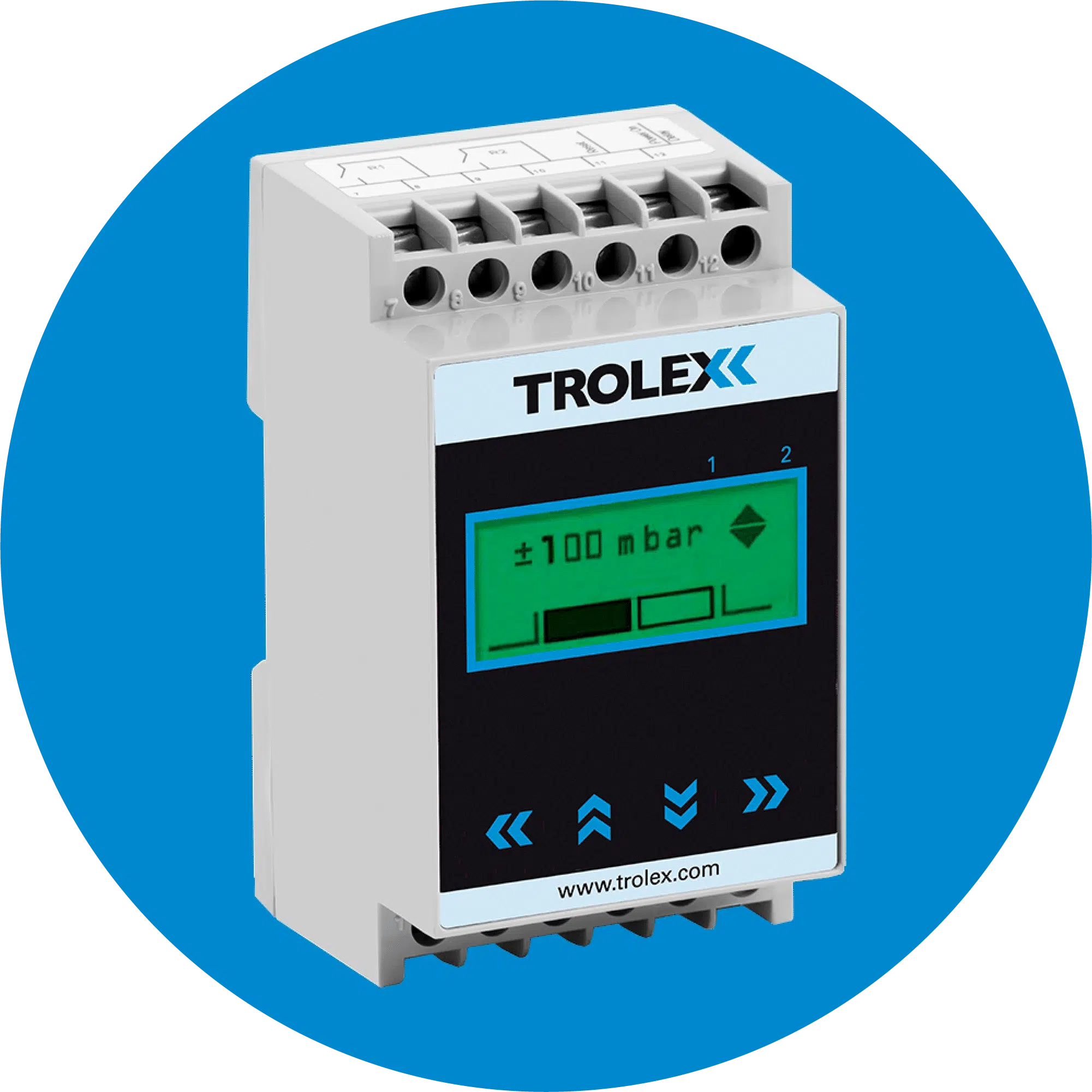

• The TROLEX Programmable Trip Amplifiers offer complete versatility of sensor monitoring through an easy to use, fully programmable menu system, with a large range of operating options.
• Developed specifically for monitoring sensors in the mining industry, we have exploited our years of experience in the field of industrial controls and sensor applications to produce a system that offers unparalleled simplicity of operation.
• The Trip Amplifier will accept input signals from a variety of analogue sensors. The input signal is conditioned and processed, by a microprocessor, to control two independent output relays with indicating LEDs and a dot matrix data display. Some versions are provided with a repeater output signal for communicating with remote data systems.
• All functions of the Trip Amplifiers can be programmed, by the user, through the 4-way keypad. A simple, easy to use, menu system guides the user through the programming sequence and all settings are retained under power failure.
• External control functions are also available for POWER ON DELAY which can be used to inhibit the output relays during the warm-up or start up period of a machine or process, and an external reset input is provided to reset any latched alarm functions.
• Further technical application data is available on request and our Applications Department will be pleased to provide any technical advice and support that you may require.

TX9130 Trip Amplifier User Manual

TX9130 Trip Amplifier Data Sheet

TX9130-TX9151 Programmable Trip Amplifier – ATEX Certificate (Sira 99ATEX2136X Issue 11)

TX9130-TX9151 Programmable Trip Amplifier – ANZEx Certificate (ANZEx 11.3004X Issue 2)

TX2101-2_TX2131_TX2141_TX2121-2_TX9042_TX9130 – EAC Certificate (RU C-GB.HB66.B.00026-24)

TX913x Programmable Trip Amplifiers – IA Certificate (MASC M11-220X)

TX9131 Trip Amplifier – ERTL Test Report (ERTL-E-TES-T238-0004-01-22-NABL)

TX9131 Programmable Trip Amplifier – MA Approval (J2019041)
